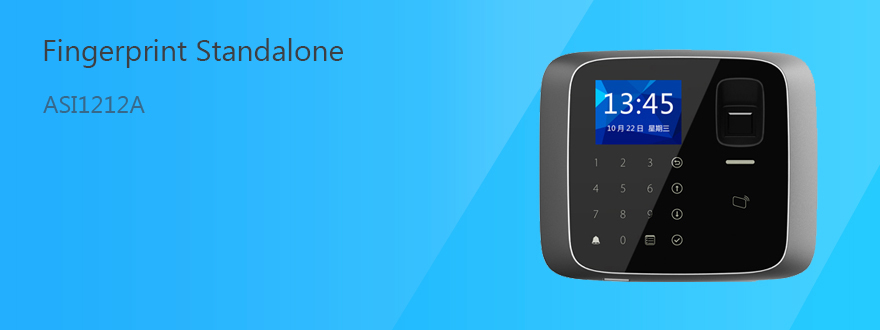

Fingerprint Standalone
>Touch keyboard and LCD display
>Voice prompt
>Support 30,000 valid cards & 150,000 records
>Support multiple cards(default IC card) (“-D” means ID EM card)
>Support card, password, fingerprint and combination
>TCP/IP or RS-485 interface to PC
>Wiegand or RS-485 interface to readers
>Door time out alarm, intrusion alarm, duress alarm and tamper alarm
>Anti-pass back, multi-card open
>Software attendance
>Support 128 efficient time and holiday schedules
>Watch dog function ensure device free from halting
داهوا/DAHUA
ASI1212A
| Cardholders/Events | 30,000/150,000 | |
| Fingerprint | 4500 | |
| Genreal | ||
| RTC | Yes | |
| Dimension(W×D×H) | 158mm*191mm *32mm | |
| Working Humidity | ≤95% | |
| Working Environment | -5℃-+55℃ | |
| Power Supply | 9-15DC/200mA | |
| Ingress protection | IP55 | |
| LCD Display | Sensitive touch keypad with blue backlight | |
| Beep Tone | Buzzer | |
| Voice Prompt | Yes | |
| Weight | 0.7Kg | |
| Input/Output Ports | ||
| Input | Door sensor x 1, Exit button x 1, Alarm input x 1 | |
| Output | Relay x 4 (Door lock, Bell, Alarm x 2) | |
| Reader | Reader x 1 | |
| Card Read | ||
| Read Format | 13.56MHz(Mifare)/125KHz(“-D” EM, Optional) | |
| Read Range | 3-8cm (max.) | |
| Response Time | <0.1s | |
| Fingerprint Read | ||
| Response Time | ≤0.5s | |
| Recognition Time | ≤1.5s | |
| FAR | ≤0.00004％ | |
| FRR | ≤0.15％ | |
| Function | ||
| ID Setting | Using friendly CMS or command by keypad | |
| User Management | General, VIP, Guest, Patrol, Black list, Force | |
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm | |
| Schedule Setting | Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period | |
| Interface | ||
| To PC | RJ45(10/100M)/RS485 | |
| To Reader | Wiegand/ RS485 | |
| System | ||
| Main Processor | 32 Bit | |
| Memory | 16M | |
