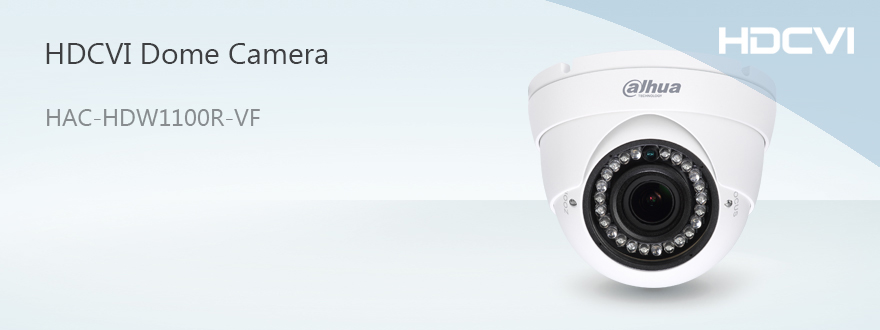

1MP HDCVI IR Eyeball Camera
>1/2.9" 1Megapixel CMOS
>25fps@720P
>High speed, long distance real-time transmission
>Day/Night(ICR), AWB, AGC, BLC, 2DNR
>2.7~12mm vari-focal lens
>Max. IR LEDs length 30m, Smart IR
>IP67, DC12V
داهوا/DAHUA
HAC-HDW1100RVF
| Camera | ||
| Image Sensor | 1/2.9 | |
| Effective Pixels | 1280(H)×720(V) | |
| Electronic Shutter | 1/50s~1/100,000s | |
| Video Frame Rate | 25fps@720P | |
| Synchronization | Internal | |
| Min. Illumination | 0.05Lux/F1.4, 0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output | |
| Camera Features | ||
| Max. IR LEDs Length | 30m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D | |
| Lens | ||
| Angle of View | H: 93º~35º | |
| Mount Type | Φ14 | |
| Lens Type | Manual / Fixed Iris | |
| General | ||
| Power Supply | DC12V±25% | |
| Power Consumption | Max 2.8W | |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
| Ingress Protection | IP67 | |
| Transmission Distance | Over 800m via 75-3 coaxial cable | |

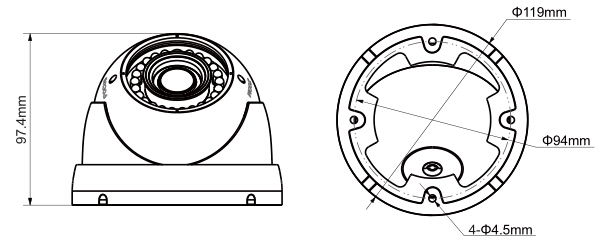

| Dimensions(W×D×H) | Φ119mm×97.4mm | |
| Weight | 0.55kg | |
| Material | Metal | |
